    • Multi Reax vortex
    • DMR-300
    • Amplitude: 3mm, Speed range: 300~3000rpm.
    • DMR-300
    • Multi Reax vortex
    • Amplitude: 3mm, Speed range: 300~3000rpm.
    High throughput is one of the daily challenges that analytical laboratories must address. To simplify these processes, we have developed a multi-point vortex mixer that is widely used in biological experiments, medical and health industries, materials, food, and chemical industries (such as saccharin and blood).
    Product Introduction

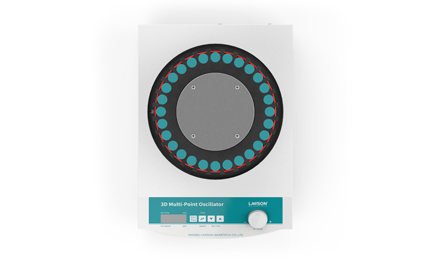

    High throughput is one of the daily challenges that analytical laboratories must address. To simplify these processes, we have developed a Multi Reax vortex that is widely used in biological experiments, medical and health industries, materials, food, and chemical industries (such as saccharin and blood).


    Product Features
    · It can hold 16 tubes with a diameter of 16-32mm or 28 tubes with a diameter of 9-18mm, including thick-walled cuvettes, glass pressure tubes, Teflon-sealed reaction tubes, Nessler tubes, centrifuge tubes, organic glass tubes, high borosilicate glass tubes, etc. (with clip covers or screw-type covers).
    · The 3mm amplitude ensures excellent vortexing effect for large volume and difficult-to-dissolve samples.
    · The digital display of the rotation speed is continuously adjustable and can be adjusted within the range of 300-3000rpm.
    · The integrated timer can be set for up to 99 hours and 59 minutes (or 5999 minutes), and the vibration function will automatically stop after the set time, allowing for unmanned operation. After the task is completed, a prompt tone will be given, so that other tasks can be processed while preparing the sample.

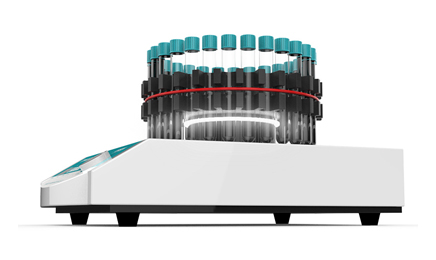

    · It is bundled with a circular tie, which makes it easier to insert samples, and is equipped with an internal 24V LED light strip to visually display the mixing and vortexing effect of the samples.
    · Maximum load capacity of 1.8kg.
    · Protection grade IP30.


    Applications
    1. Food: additive content, organic hazardous substances
    2. Pharmaceutical analysis: traditional Chinese medicine pesticide residues, biochemical analysis of western medicine
    3. Agriculture and byproduct testing: QuEchERS, agricultural product residues, animal feed residues
    4. Environmental testing: water quality, soil


    Technical Specifications
    Model: DMR-300
    Control mode: Combination of buttons and knobs
    Display mode: Digital display
    Amplitude: 3mm
    Disk size: R50: Inner Φ14.2cm, Outer Φ27.2cm
    R15: Inner Φ14.2cm, Outer Φ25.2cm
    Adapter specifications: Can accommodate 16 tubes with a diameter of 16-32mm (30-50ml)
    Can accommodate 28 tubes with a diameter of 9-18mm (10-25ml)
    Standard accessories: 2 tube clamps
    Rotational speed range: 300 ~ 3000rpm
    Output power: 150W
    Motor type: DC motor (brushless)
    Angle: Three-dimensional
    Motion mode: Automatic reset
    Protection class DIN EN 60529: IP 30
    Timing function: 1 ~ 99 hours 59 minutes
    Maximum load: 1.8kg
    Operation mode: Timing or continuous
    Rotational speed setting: Numeric (knob)
    Allowable environmental conditions: Maximum relative humidity of 80% at 5 ~ 35 °C
    Linearly decreasing relative humidity up to 50% at 36 ~ 40 °C
    Size (w/d/h): 310 x 450 x 200 mm
    Weight: 17.05 Kg
    Rated voltage: 110-220V 50/60Hz


    Optional Special Adapter Bracket Selection
    Model Specification Applicable Test Tube Diameter
    R50 16*(30~50ml) Φ16~32mm
    R15 28*(5~25ml) Φ9~18mm


    Single Page - Color Page
    Name: Author: Action:
    Multi Reax vortex DMR-300 Vortexer Download


    Related products
    Name: Model:
    Multi Reax shaker DMR-400
    Multi Reax mixer DMR-200
    Multi Reax vortex DMR-300
    Product List
    DMR-300 Unit
    Host Machine Unit
    Special Adapter Bracket Set
    Power cord piece
    User manual copy
    Warranty card copy
    Certificate of qualification copy
    Description
    1
    1
    1
    1
    1
    1
