    • Infrared-Sterilizer
      •


    • Gene Transfer Instrument
      •


    • Spectrophotometer
      •


    •



















    • Nano Spectrophotometer
      •













    • Nano-800
      •

    • Nano Spectrophotometer
      •

    • Wavelength range: (190nm-900nm), absorbance range: 0.02-300A (equivalent to 10mm)
      •

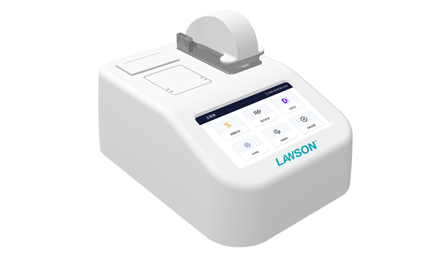

                        Nano-800 Nano Spectrophotometer is a high-reproducibility full-wavelength spectrophotometer that uses a dual-detection mode on both the pedestal and cuvette for a wider concentration range of sample detection. It is easy to operate and can be used not only to measure the purity and concentration of DNA, RNA, and protein, but also for absorbance detection in general substance analysis.




















						Product Introduction





						Nano-800 Nano Spectrophotometer is a high-reproducibility full-wavelength spectrophotometer that uses a dual-detection mode on both the pedestal and cuvette for a wider concentration range of sample detection. It is easy to operate and can be used not only to measure the purity and concentration of DNA, RNA, and protein, but also for absorbance detection in general substance analysis.





















							Product Features





							• Uses independently developed light source control algorithm and data acquisition correction algorithm to make data more accurate and stable.





							• Unique motor control technology, using "4" optical path detection mode, with better stability, repeatability, linearity, and larger measurement range.





							• Samples do not need to be diluted, and the concentration range of samples that can be measured is more than 150 times that of conventional UV-visible spectrophotometers.





							• Strong repeatability and high linearity.





							• Equipped with an OD600 optical path detection system, which is more convenient for detecting the concentration of bacteria, microorganisms, and other culture media than the cuvette mode.





							• Independently developed Android operating system, 7-inch capacitive touch screen, no need to connect to a computer, can be operated as a standalone device.





							• Easy-to-use data-to-printer options, you can directly print reports through the built-in printer.





							• With fluorescent quantification reagents, it can detect pg-level concentration of dsDNA {Nano-800 exclusive}.





















								Technical Parameters







								Model:

								Nano-800





								Wavelength Range:

								190nm-900nm





								Sample Volume:

								0.5-2μl





								Light Source:

								Xenon lamp





								Detector:

								HAMAMATSU UV-enhanced CMOS linear array sensor





								Accuracy of Absorbance:

								0.002Abs





								Precision of Absorbance:

								±1% (7.332Abs at 260nm)





								Range of Absorbance:

								0.02 - 300A (equivalent to 10mm)





								Wavelength Reproducibility:

								<0.2nm





								Nucleic Acid Detection Range:

								2.0 - 27,500 ng/µL dsDNA and 0.06 - 820 mg/mL BSA





								Detection Time:

								<5S





								Fluorescence Sensitivity:

								DsDNA: 0.5pg/ul





								Fluorescence Linearity:

								≤1.5%





								Optical Density Reproducibility:

								[0,3)≤0.5%,[3,4)≤0.2%





								Optical Density Accuracy:

								[0,2)≤0.005%,[2,3)≤1%,[3,4)≤2%





								Wavelength Accuracy:

								<1nm





								Data Output:

								USB





								Photometric Accuracy:

								<0.005A or <1%





								4-Path Length:

								0.02mm, 0.05mm {for high concentration measurement}, 0.2mm, 1.0mm {for normal concentration measurement}





								Sample Volume Requirement:

								0.5~2ul





								Sample Pedestal Material:

								Quartz Fiber and High Hardness Aluminum





								Print:

								Built-in Thermal Printer





								Power Adapter:

								24V DC





								Power Consumption:

								25W





								Weight:

								5Kg





								Dimensions:

								200×260×165(W×D×H)mm





















									Single Page - Color Page









									Name:

									Author:

									Action:





									Nano Spectrophotometer Nano-800

									Spectrophotometer

									Download





















										Related products







										Name:

										Model:





										Ultra Micro Spectrophotometer

										Nano-Plus





										Nano Spectrophotometer

										Nano-800





										Spectrophotometer

										Nano-D600
























	Product List












                	        Nano-800
                            Unit





                	            Host Machine
                                Unit





                	            Power cord
                                piece





                	            Warranty card
                                copy





                	            Certificate of qualification
                                copy





                	            User manual
                                copy






















    Description


    1
    1
    1
    1
    1
