    • Sonics ultrasonic processor
      •

    • VCX500
      •

    • Power: 500W, standard swing arm processing volume: 50ml to 250ml.
      •











    • VCX500
      •

    • Sonics ultrasonic processor
      •

    • Power: 500W, standard swing arm processing volume: 50ml to 250ml.
      •

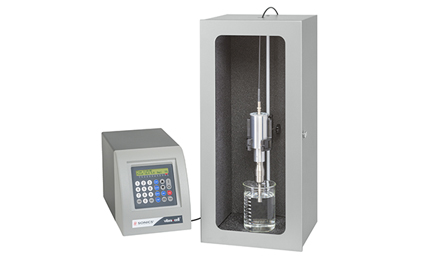

                        Sonics ultrasonic processor VCX500 can safely process various organic and inorganic materials, from 250 microliters to 1 liter*. Typical applications include nanotechnology (production of nanoparticle materials and graphene dispersions), cell lysis, sample preparation, homogenization, ChIP analysis, emulsification, disaggregation and deagglomeration, as well as applications in the field of ultrasonic liquid chemical processing.




















						Product Introduction





						Sonics ultrasonic processor VCX500 can safely process various organic and inorganic materials, from 250 microliters to 1 liter*. Typical applications include nanotechnology (production of nanoparticle materials and graphene dispersions), cell lysis, sample preparation, homogenization, ChIP analysis, emulsification, disaggregation and deagglomeration, as well as applications in the field of ultrasonic liquid chemical processing.





















							Product Features

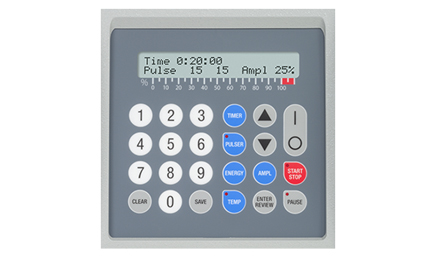

							◆ Programmable





							◆ Variable power output





							◆ 10-hour timer





							◆ Pulse mode





							◆ Power and energy display





							◆ Temperature monitoring





							◆ Energy setting value





















								Experimental Objectives





								1. Understand the basic principles of ultrasonic cell disruption.





								2. Master the basic techniques of ultrasonic cell disruption.





















									Principle of Experiment





									When strong sound waves act on a solution, the cavitation phenomenon of bubble generation, growth, and rupture is related. The shock waves and shear forces caused by cavitation phenomenon cause cell lysis.





									Materials and Reagents

									10ml bacteria, beaker, crushed ice, 75% alcohol cotton ball.





















										Probe Selection







										Probe Model and Size

										Cell Disruption Capacity





										2mm

										150ul－5ml





										3mm

										250ul－10ml





										6mm

										10ml－50ml





										13mm

										50ml－250ml





















											Technical Specifications







											Model:

											VCX 500





											Frequency:

											20KHz





											Power:

											500W





											Inverter Model:

											CV18





											Standard Amplitude Bar:

											Φ13mm





											Standard Amplitude Bar Length:

											136mm





											Overall Dimension of Amplitude Bar:

											235 x 190 x 340 mm





											Amplitude Bar Material:

											Titanium alloy Ti-6Al-4V





											Standard Amplitude Bar Processing Capacity:

											50ml to 250ml





											Optional Amplitude Bars:

											Φ2mm, Φ6mm, Φ13mm





											Weight of the amplitude bar:

											900g





											Length of the amplitude bar cable:

											1.5m





											Duty cycle:

											1-99%





											Power adjustment range:

											Continuously adjustable (20-500w)





											Interval time:

											0.1-99.9s





											Temperature protection setting:

											Available, energy and temperature setpoint control (temperature probe needs to be added)





											Power amplitude display:

											Available





											Working frequency range:

											Digital wattmeter of energy monitor, automatic tuning and automatic amplitude compensation





											Working time:

											Microprocessor-based programmable 10-hour timer, 1-59 seconds independent/on-off pulse





											Ultrasonic time:

											From 1 second to 10 hours





											Working mode:

											Interval/continuous





											Power supply:

											220/110V 50Hz/60Hz or, unless otherwise specified, the power requirements are sent at 117V, 50/60Hz





											Net weight:

											6.8kg





											Main unit + transducer weight:

											3680g



























	Product List












                	        VCX500
                            Unit





                	            Host Machine
                                Unit





                	            Toolbox
                                set





                	            Power cord
                                piece





                	            Soundproof box
                                set





                	            Special Crushing Cup
                                Piece





                	            Temperature sensor
                                piece





                	            User manual
                                copy






















    Description


    1
    1
    1
    Optional
    Optional
    Optional
    1
