    • Laboratory high-pressure homogenizer
      •

    • LHP-30H
      •












    • LHP-30H
      •

    • Laboratory high-pressure homogenizer
      •

    • Design flow rate: 25~30 L/H, maximum pressure: 120/1200/17400 (MPa/bar/psi), minimum processing volume: 50 ml
      •




                        Laboratory high-pressure homogenization is a process that reduces the particle size and enhances the uniform distribution of dispersed particles in a suspension (or emulsion) system. This treatment simultaneously reduces the size of dispersed particles and improves the uniform distribution.




















						Product Introduction





						Laboratory high-pressure homogenizer is a processing technique that reduces the particle size and enhances the uniform distribution of dispersed particles in a suspension (or emulsion) system. This treatment simultaneously reduces the size of dispersed particles and improves their uniform distribution.





















							Product Features





							○ Structural Features: Single ceramic plunger drive, precise control of discharge flow rate. Optional plunger lubrication device for longer sealing lifespan.





							○ Homogenization Pressure: Maximum design pressure of 120 bar/1200MPa/17400psi, with optional sanitary-grade digital diaphragm pressure gauge.





							○ Homogenization Flow Rate: Minimum sample volume of 15ml, especially suitable for expensive drug production. Automatic material suction, no need for feeding equipment.





							○ Component Technology: Homogenization valve seat components can be made of materials such as tungsten carbide, stainless steel, diamond, and Stellite, with single/double-sided processing and dual-sided usage for doubled lifespan. Secondary valve for dispersion and emulsification, ensuring more uniform material distribution.





							○ Energy-saving Technology: Equipment with frequency conversion control, can be operated using 220V power supply, imported brand components for more stability, lower energy consumption, and higher energy efficiency ratio.





















								Application Range





								○ Preparation of lipid nanoparticles, drug-loaded emulsions, liposomes, nano-suspensions, and microcapsules in the pharmaceutical industry.





								○ Cell disruption, extraction, and homogenization of intracellular and extracellular substances in biotechnology products.





								○ Production and preparation of fine chemicals, carbon nanotubes, graphene, conductive pastes, and resistive pastes.





								○ Homogenization dispersion of lipid nanoparticles in personal care products.





								○ Homogenization and emulsification of food and industrial products to improve product stability.





								○ Plastics, polymers: PE, PS, textiles, resins, etc.

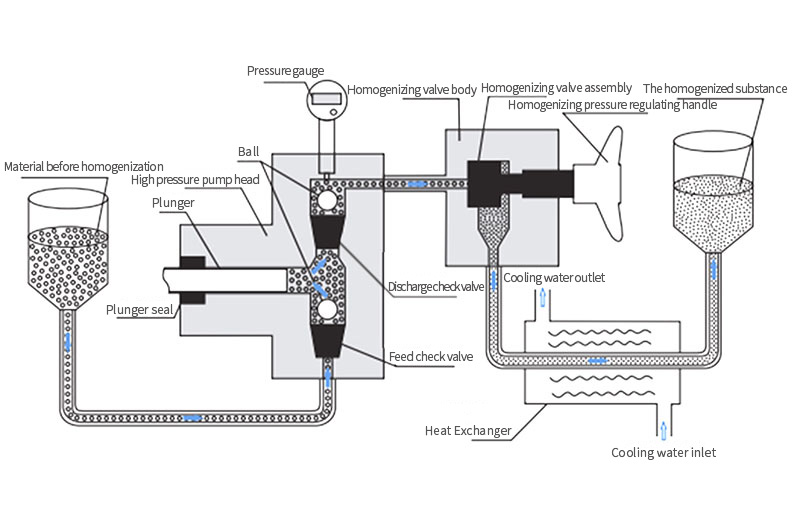

									Operating Principle





									When the high-pressure pump head assembly is in operation, the material is drawn into the pump chamber through the one-way valve. Under the action of the plunger, the fluid material between the pump chamber and the homogenizing valve seat will generate extremely high pressure.





									When the high-pressure material passes through the homogenizing valve assembly, the following three homogenization responses occur:





									○ Shearing action: The gap between the homogenizing valve seat and the valve core is very small, causing shear on the material particles.





									○ Cavitation response: The high-speed extruded material instantaneously loses pressure, ultimately achieving the purpose of uniform distribution of the material.





									○ Impact action: The high-speed extruded material impacts the collision ring at extremely high speed, producing impact fragmentation.





									High-pressure homogenizer





















										Technical Parameters







										Model:

										LHP-30H





										Design Flow Rate (L/H):

										25~30





										Design Maximum Pressure (MPa/bar/psi):

										120/1200/17400





										Voltage (V):

										220





										Number of plungers:

										2





										Power (kW):

										3





										Main Functions:

										Homogenization, Cell Disruption, Refinement (Optional cooling unit for temperature control)





										Minimum Processing Volume:

										50ml





										Product Process Viscosity:

										2000cp





										Maximum Feed Particle Size:

										<300μm





										Working Pressure Display:

										Digital Pressure Gauge





										Control Method:

										Manual Operation





										Maximum Product Inlet Temperature:

										90°C





										Weight:

										120kg
